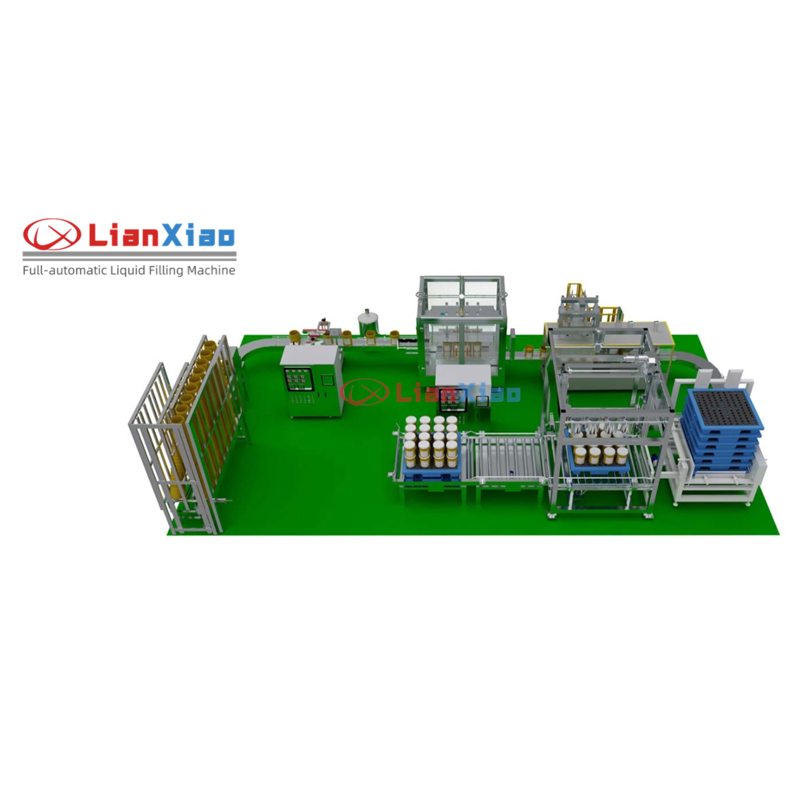

200L Fully Automatic Filling Production Line

The 200L automatic filling line is a kind of highly automatic production equipment, which is specially used for filling 200L liquid products and is widely used in many industries, including but not limited to petrochemical, fine chemical, daily chemical, oil, medicine and so on. It is especially suitable for filling coatings, paints, inks, adhesives, curing agents, dyes, cleaning agents, oil, lubricants, edible oils, flavors, solvents, additives, food additives, pesticides and other dangerous chemical products. Especially for flammable, explosive, highly corrosive and toxic, prone to foam, oxidation, volatile liquid products for automatic filling.

    System parameters

    Filling range

    (kg/barrel)

    60~300

    Use environment

    0~45℃

    Filling speed

    (cans/H)

    60~120

    Power supply

    (VAC)

    220/380

    Filling accuracy

    (F.S)

    ≤0.1%

    Gas source

    (kg/㎡)

    4~6

    Graduation value

    (g)

    50

    backgroundmdw

    Product advantages

    1.Highly automated
    It realizes the functions of automatic barrel feeding, automatic cap opening, automatic filling, automatic weighing and measuring, automatic cap fixing, automatic lock, automatic pressure waterproof cap, automatic check and reject, automatic code and label labeling, robot palletizing, automatic storage and so on.
    In the filling process, the empty barrel is put into the bottle-arranging machine by man, and the subsequent operation is completed by the equipment automatically, which greatly reduces the manual intervention and improves the production efficiency.
    2.Accurate measurement
    Adopt high precision flowmeter to ensure the accuracy of liquid filling volume and reduce material loss.
    3.Stable and reliable
    Stable operation of the equipment, low failure rate, to ensure the continuity of production and reliability.
    4.Intelligent control
    PLC control system is adopted to realize the automatic operation of the equipment, which is convenient for management and adjustment. The auxiliary functions of nitrogen protection, pipeline purging, cleaning and heat tracing can be realized according to the material characteristics to ensure the smooth operation of the production process.
    5.Safety and hygiene
    The use of closed filling to ensure the safety of liquid health.
    The equipment has the functions of compound explosion-proof, clean and environment-friendly sealing filling, etc. . It meets the requirements of safe production.
    6.Modular configuration
    Whole line according to the needs of module configuration, can be flexible adjustment according to different production needs.
    7.Full process data management
    Provides the entire process remote data management function, the data has the storage, the inquiry and the management function, facilitates the enterprise to carry on the production management and the data analysis.
    background-5jls

    How it works

    1.The conveyer sends the empty barrel group into the automatic barrel dividing machine.
    2.After barrel separation, the empty barrel is conveyed to the filling station.
    3.Six head at the same time filling, filling head inserted into the bottle opened for rapid blanking.
    4.When the set weight of slow feed is reached, it will automatically switch to slow feed.
    5.When the weight reaches the target value to stop blanking, then the instrument skin shows the total weight.
    6.The finished product barrel is automatically conveyed to the upper cover area, and after the upper cover is completed, the finished product barrel is conveyed to the lock cover station.
    7.After the lock cover is completed, it is transported to the label position and finally to the palletizing station.
    8.Robot according to the set number of buckets to grasp and put on the tray palletizing.
    9.When the palletizing is finished, the finished products are transported to the temporary storage area, to be picked up by the forklift truck.
